Electric Cassava Starch Sifter Processing Machine Wet Starch Slurry Separator
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | JINGHUA |
| Номер модели: | просеватель крахмала |
Оплата и доставка Условия:
| Количество мин заказа: | 1 комплект |
|---|---|
| Цена: | Подлежит обсуждению |
| Время доставки: | 10 рабочих дней |
| Условия оплаты: | L/C, D/P, D/A, Western Union, T/T, MoneyGram |
| Поставка способности: | 10 |
|
Подробная информация |
|||
| Применимые отрасли: | линия по переработке сладкой картофеля | Система управления: | Система управления ПЛК |
|---|---|---|---|
| Размер: | Индивидуальные | Тип обработки: | Переработка крахмала |
| зарубежная установка: | Установка для измельчения муки маниоки | Функция: | Многофункциональный |
| Упаковка: | Деревянный корпус/обычный | Основной продукт: | Мука Miller |
| Источник питания: | Электричество | Основные компоненты: | Стиральная машина, машина для очистки, шлифовальная машина, центрифуга, сушилка. |
Характер продукции

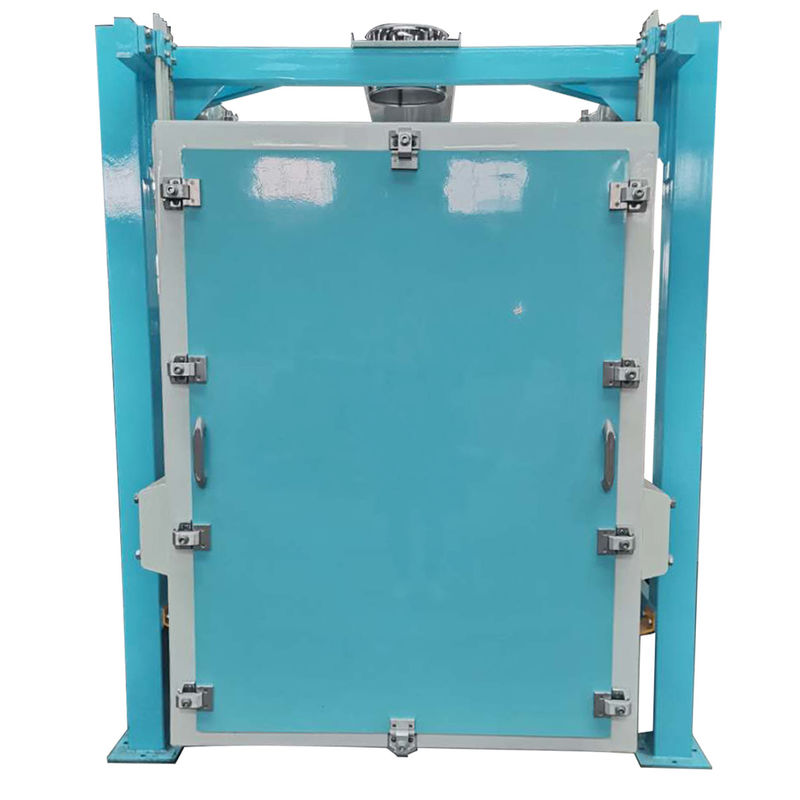

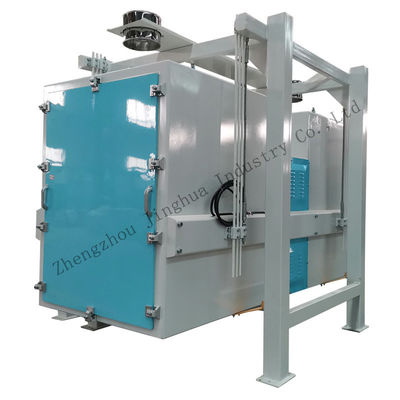

The machine is composed of two main parts: the mild steel frame mounted with clamps for the flexible suspension rods, floor plates for mounting and the mild steel box section for the sieve frames with upper clamping by means of a metal frame and clamping pressure micrometric screws.
The drive unit with counter balance weight, with motor, pulleys, v-belt is mounted under the cabinet box section, adjustable to suit different applications. Material is fed into the top and by the machines circular motion, the fine material moves through the sieve mesh and is discharged out each sieve side to outlets, while the course material over tails and sent to separate outlets.
|
Model |
Bin (Piece) |
Number of sieves (piece) |
Capacity (t/h) |
Diameter (mm) |
Power (Kw) |
Weight (kg) |
Dimension (mm) |
|---|---|---|---|---|---|---|---|
|
GDSF2*10*100 |
2 |
10-12 |
8-10 |
Φ45-55 |
2.2 |
1200-1500 |
2530x1717x2270 |
|
GDSF2*10*83 |
2 |
8-12 |
5-7 |
Φ45-55 |
1.5 |
730-815 |
2120x1440x2120 |
|
GDSF1*10*83 |
4.5 |
2-3 |
3-4 |
Φ40 |
0.75 |
600 |
1380x1280x1910 |
|
GDSF1*10*100 |
6.4 |
3-4 |
4-5 |
Φ40 |
1.5 |
750 |
1620x1620x1995 |
|
GDSF1*10*120 |
7.6 |
4-5 |
5-6 |
Φ40 |
1.5 |
950 |
1890x1890x2400 |
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province, with export license and we have done export business over 20 years professionally.
Q2.What is your main business?
A: Zhengzhou jinghua is devoted to starch processing machine. The machine of starch processing line, such as: cassava starch line, cassava flour line, potato starch line, sweet potato line, wheat starch, sago line and garri line
Q3:Where is your factory located? How can I visit there?
A: Our add: Zhengyun Road and Guanggu Road intersection, Guangwu Town, Zhengzhou City, Henan Province, China. Warmly welcome to visit us!
Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.
Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;
Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
